T3/T4 T04E 5-Bolt Turbocharger Universal Turbo 0.63 /0.5 A/R Universal

Fit for:

for 1.5L to 2.5L any 4/6 cylinder engine

Boost pressures are7psi(.5 Bar) to 21psi(1.5 Bar)





Specification:

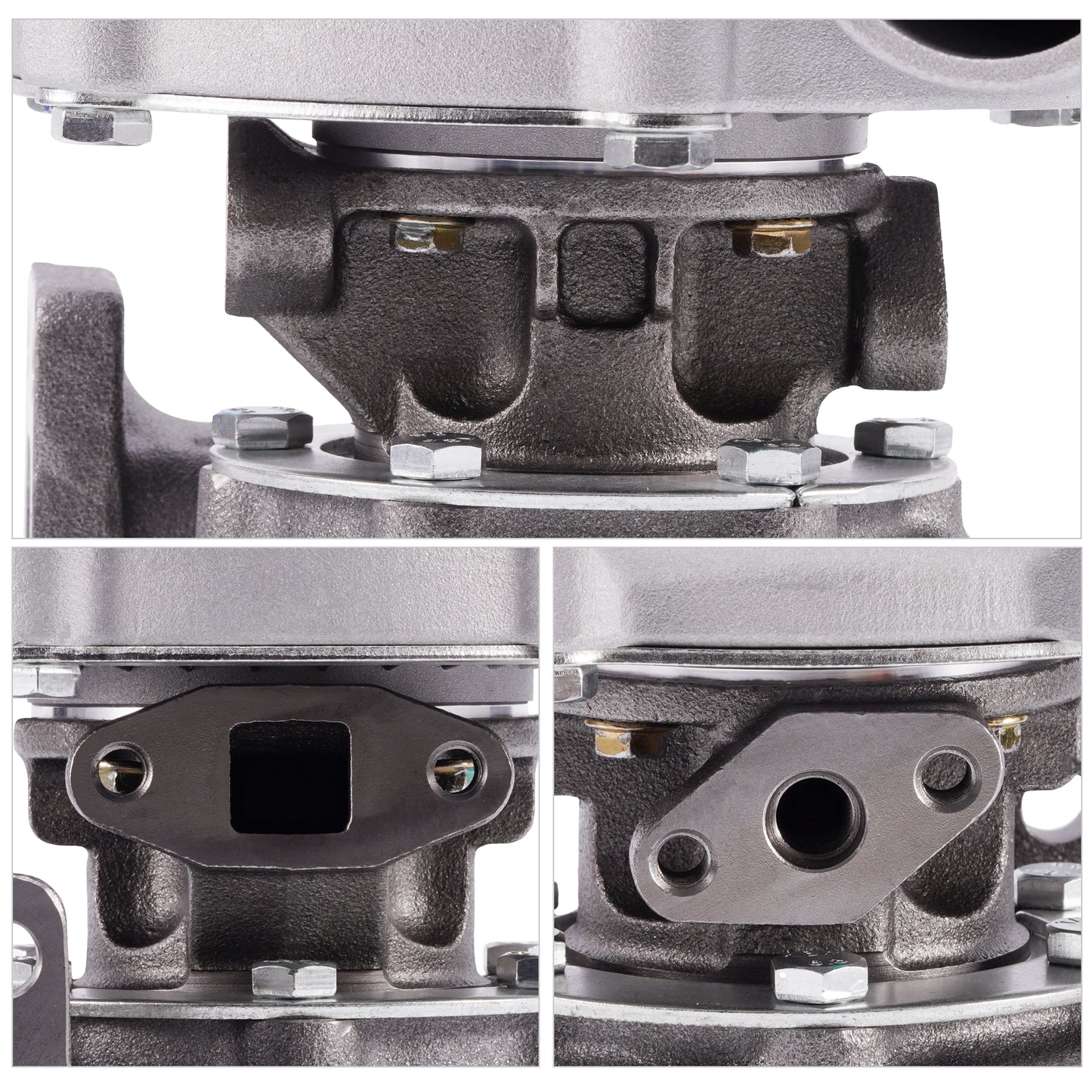

Exhaust (Turbo Manifold) Flange:T3 T4 4 bolt Flange Patterns

Exhaust Flange:Standard T3 5 bolt flange pattern

Cooling Type:Oil Cooling

Bearing Type:Journal Bearing/Floating Bearing

Thrust Bearing:270 degrees

Horse Power:Up to 400 HP

Wastegate:External Wastegate

Actuator Type:W/O Actuator

Turbo Type:Individual

Universal Fitment:Yes

Finish:Matte

Condition:100% Brand New

Accessories:You will get exactly as shown as picture above

Package Size:27x 25x 24 cm

Package Weight:7250g

Compressor:

Trim: 44

A/R: 0.5

Inducer: 50.5

Exducer: 76

Turbine:

Trim: 73

A/R: 0.63

Inducer: 65.5

Exducer: 55.9



Package included:

1x Turbocharger

1x Flange Gasket

2x Oil Port Gaskets



Features:

*Product Material

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness corrosion resistance

*Product Performance

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer



NOTE:

* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.

* Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
